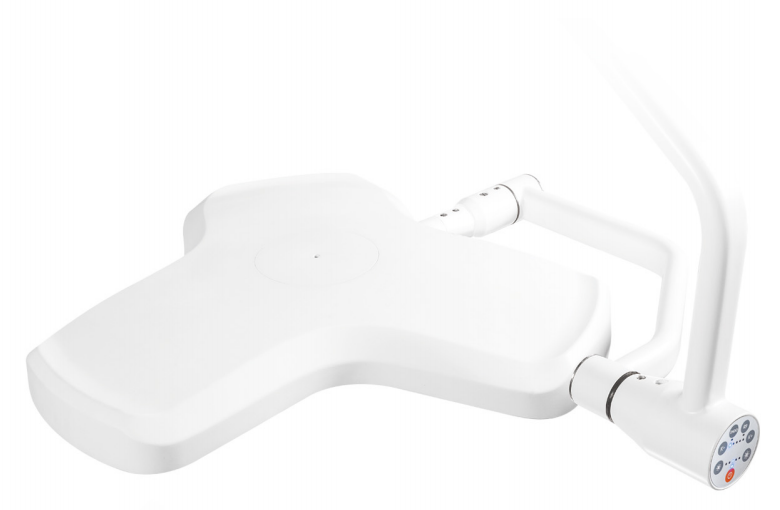

Double heads LED Operation Lamp

Name: Double heads LED Operation Lamp
Brand: Mango
Price: 2000 USD

Brand Name : Mango

Model Number : MSTZ4/MSTZ4

Place of Origin : China

MOQ : 1 unit

Price : 2000~2500USD/unit

Payment Terms : T/T

Supply Ability : 100 units/week

Delivery Time : 10-15 days

Packaging Details : Plywood case + carton

Certification : CE

Arm Joint Type : Spring Type Joint Arms

Classification : Class 1 (MDD 93/42 EEC)

Standards : EN 60601-1, EN 60601-2-41

Illumination(LX) : 10000-160000

Color Temp : 3000k~6700K

CRI(Ra) : ≥85

Spot Diameter (mm) : 100-180±40

Lighting Depth (mm) : ≥800mm

App. Model : background light/surface/deep cavity /normal mode

Dimming Control : 12 shift scales

Temp Rise at Surgeon's Head (degrees Celsius) : ≤1

Temp Rise (degrees Celsius) : ≤2

Power Supply : 110-130/220-240 V, 50/60 Hz

Max. power consumption : 120VA/120VA

Bulb service life : more than 50,000 hours

Bulb number : 39/39 pcs

Warranty : 1 Year

Ceiling height for installation(cm) : 270-320

Contact Now

Perfect Cold Light Effect
Ideal Purification Requirements of Shape Design
Deep Lighting and Perfect Shadowless Effect

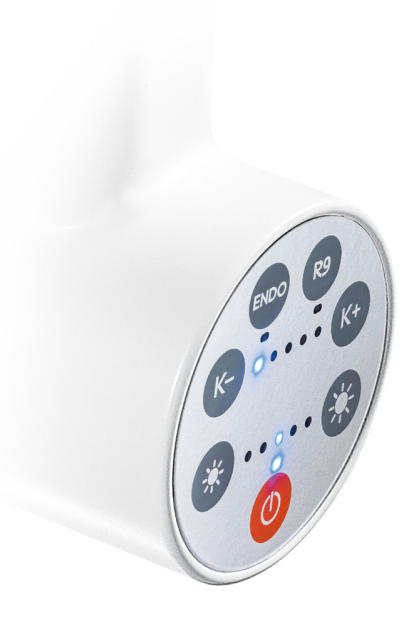

Human interface design
Unique counter balance offers drift-free performance

Specifications

Model: MSTZ4/STZ4

Illumination at 1m: 160000/160000 lux

Illumination at 1m on Endo mode: 10000 lux

Light field diameter at 1m: 10-28 cm

Light field diameter D10: 180±40 / 180±40 mm

Light field diameter D50: 110±35 / 110±35 mm

L1+L2 Depth of illumination: 150 cm

Color rendering index(Ra): 100≥Ra≥85

Working distance:70-140 cm

Optional color temperature: 3000K~6700K

Number of LEDs:39/39

Average bulb life:50000 hours

Heat-to-light ratio: ≤3.2 mW/m²lx

Power supply:110-240 V,50/60HZ

Max. power consumption:120VA/120VA

Ceiling installation height:270-320 cm
