Electric Surgical Table MDT-7000

Functional Description
1. Six core movements including height adjustment, Trendelenburg/reverse Trendelenburg tilt, lateral tilt, longitudinal translation and backrest elevation are driven by seven motors from reputable brands, delivering high power output, superior safety and dependable performance.
2. Featuring modular construction, detachable head and leg plates with quick-connect fittings greatly boost safety and positioning precision. The plates adopt bolt lock structure with gas-spring assistance for easy detachment, precise adjustment and flexible setup for various surgical postures.
3. Equipped with an electric braking system, the table stays fixed once locked to ensure stable and secure operation throughout surgical procedures.
4. Dual control systems manage height adjustment, Trendelenburg/reverse Trendelenburg tilt, lateral tilt and longitudinal translation. The hand controller is fitted with an anti-misoperation safety switch.
5. The T-shaped base enhances overall stability and leaves ample foot space for surgeons to relieve fatigue during lengthy operations. The table frame and base cover are made of medical-grade 304 stainless steel with matte finishing for easy cleaning and disinfection.
6. The five-piece segmented tabletop consists of head plate, backrest plate, integrated kidney bridge, hip plate and leg plate. Optimized to fit human physiological curvature, the backrest and hip plate can be adjusted at variable angles to suit multi-site surgical requirements.
7. The multi-layer memory foam mattress features excellent pressure dispersion to lower compression injuries on patients’ peripheral tissues and reduce pressure sore risks. It is waterproof, stain-resistant, anti-static and simple to sanitize.
8. An integrated high-capacity backup battery supports continuous table operation and comes with a low-battery alert indicator.
9. A full range of functional accessories is available to satisfy diverse surgical applications.
10. Minimum table height ≤650mm with 300mm total lifting stroke, offering ample vertical adjustment range for operators.
11. The tabletop achieves 300mm longitudinal travel; carbon fiber connectors at the rear eliminate metal obstruction to enable full-range dead-angle-free C-arm fluoroscopy.

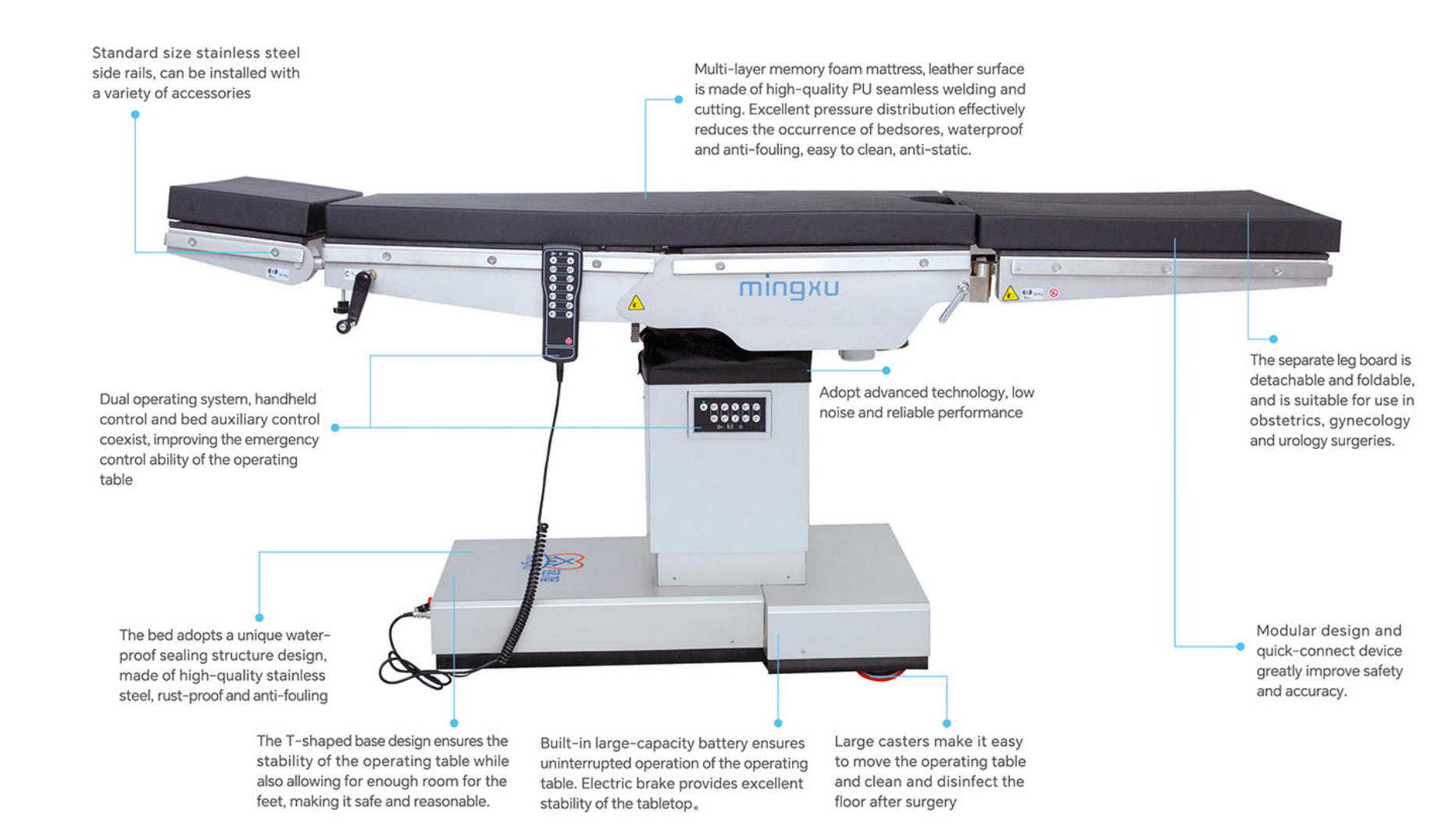

Electric Surgical Table MDT-7000 Images
